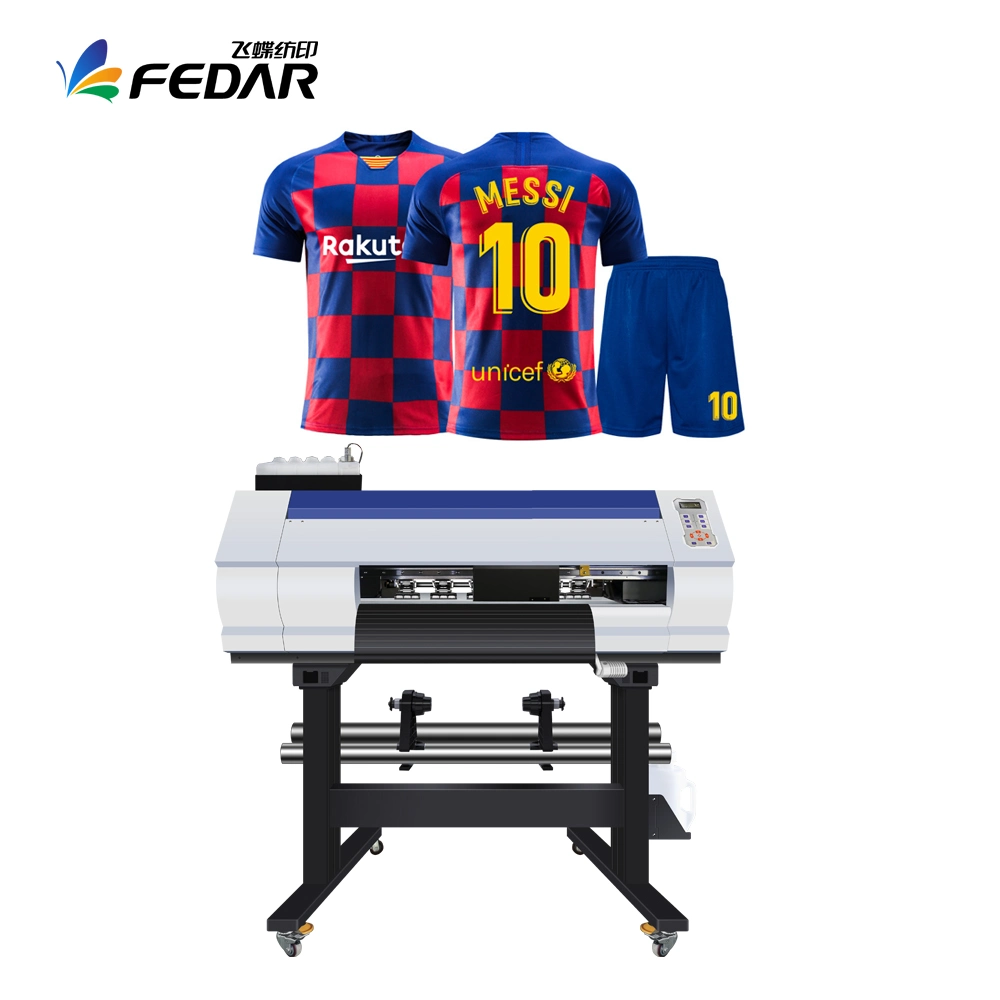

White Ink Thermal Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer

Fedar Fedar FD65-2 Pyrograph Film Printer Fedar FD65-2 Pyrograph Film Printer uses double Epson Original I3200-A1 print heads. Max Printing Width: 600mm. Max Resolution: 3200DPI. Max Production Capacity:  200pcs/h (T-shirt)Characteristics of Fedar FD65-2 Pyrograph Film Printer Servo Motor: LEADSHINE (Famous Brand

Featured Products

Fedar Fedar FD65-2 Pyrograph Film Printer
Fedar FD65-2 Pyrograph Film Printer uses double Epson Original I3200-A1 print heads. Max Printing Width: 600mm. Max Resolution: 3200DPI. Max Production Capacity:  200pcs/h (T-shirt)
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer

Characteristics of Fedar FD65-2 Pyrograph Film Printer

  • Servo Motor: LEADSHINE (Famous Brand in China)
  • Guide Line: HIWIN (Famous Brand in China) or THK (Famous Brand in Japan)
  • Cartridge: Original Import (Clean, Pump and Moisturize Automatically)
  • Main Board: Design and Produced by ourselves, it is stability and 15Months Warranty time
  • Ink Supply System: Bulk Ink Continues Supply System.
APPLICATION
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer
TECHINICAL DATA
ModelFedar FD65-2 Pyrograph Film Printer
Printing Size600mm
Printhead Type and Numbers2 EPSON Original I3200-A1 Heads
Max Resolution3200DPI
Max Materials Input Size650mm
Ink ColorDouble C M Y K
Ink TypeWater-Based Ink, Pigment Ink
Ink Supply TypeBuIk Ink System
RIP SoftwareMAINTOP6.0, PHOTOPRINT, ONYX, NEOSTAMPA
InterfaceGigabit Port
Print File FormatBMP, TIF, JPG, PDF Etc.
Drying SystemExtra Front Heating System
Materials Feeding MethodRoll to Roll, Leaf
Color ManagementICC Based; Density & Curves Adjustable
Power Supply50HZ/60HZ, 220V, 10A
Package Dimension (L*W*H)1200*960*1000mm
Gross. Weight100KGS
Working Environment Temperature20C-35C (68F-95F)
Working Environment Humidity35%-65%Rh
Printing Speed
4 PASS 9 M2/H
6 PASS 6 M2/H

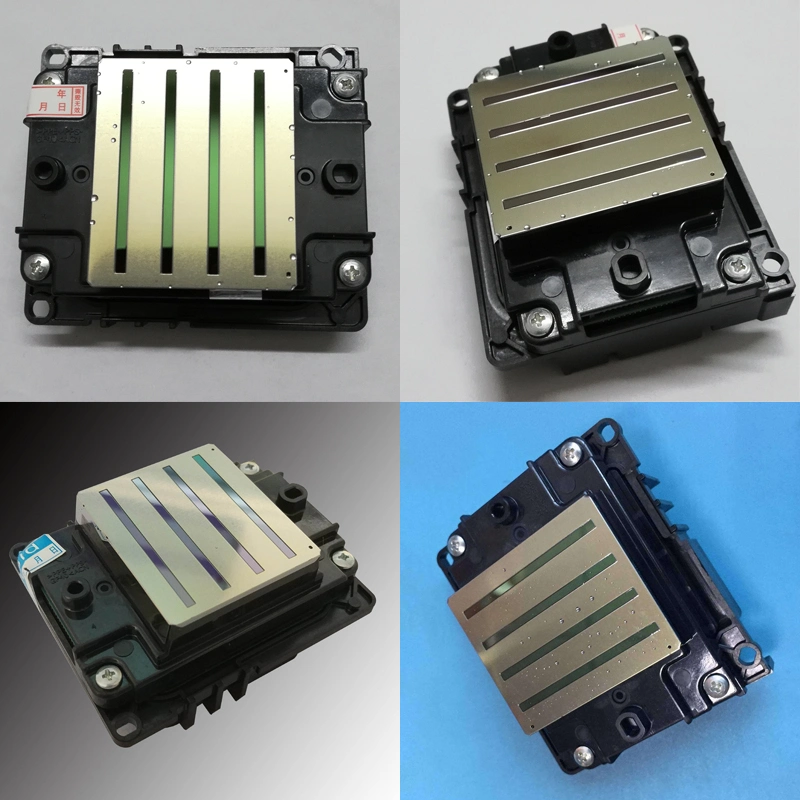

1. PRINT HEAD
Adopt Two EPSON I3200-A1 print head,as your request.price is different. variable dots technology 180 nozzles for every color, Max Resulution 3200 DPI. Max Printing Speed: 4 Sqm/H

Max Printing Width: 1900mm
4 Pass  6  Sqm/H
6 Pass  9  Sqm/H

White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer
2. CAPPING STATION
The capping station is imported from overseas to ensure its reliability and permanence. It can protect and clean printhead efficiently and conveniently. It can clean printhead, moisturize and pump ink Full automatically. Keep ink supply system work fluently.
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer
3. PRINT CARRIAGE

The height of the double-head nozzle independently developed can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer
4. HIGH-PRECISION PALTFORM

The assembly precision of the machine printing platform is controlled within plus or minus 7.5 wires, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer
5. INK TANK

FD1900 Dye Sublimation Printer uses four 3L super-large-capacity ink tank with independent and continuous ink supply. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer

6. INTELLIENT INK SHORTAGE ALARM SYSTEM
Intelligent ink shortage system reminding, reduces the tediousness of frequently checking the remaining ink, and promptly reminds to add ink to ensure the continuity of printing work.
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer
7. STABLE FEDAR SELF DESIGN PRINTING SYSTEM

The core components are made of high-quality industry accessories such as Japanese THK ultra-quiet linear guide rails, Japanese NSK bearings, German IGUS INK chain, LEADSHINE servo motor, etc. All of these ensure the accuracy of the machine and the stability of long-term work.
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer
Remote Assistance:
Free, customers can reserve from sales department in advanced.
Warranty:
15Months warranty time for our printers. In the warranty time, if the parts are broken without man-made sabotage. You can send back the broken spare parts to repair or replace. Beyond warranty time, for broken parts just need cost price.
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film PrinterTechnical Supporting:
We can send our technician to your site to provide technology supporting and training your operators. It is also acceptable for you sending your operators to our factory for training.


Package and Shipping:
Package Used Wooden Box without Fumigation
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film Printer
The package would include spare parts box and setting up machine tools.
Transportaiton By Sea or By Air are both Acceptable.

Company Informaiton
Zhengzhou New Century Digital Print Technology Co., Ltd was established on 2001 to produce Printing Device, from Novajet 750 Printer to Epson DX5 Eco Solvent Printer and more 15 years experience on wide format printing device. Up to now, we have 4 main brands of Eco Solvent Printer and Textile Printer: FEDAR, STORMJET, SKYCOLOR AND SUNIKA. We are looking forward for your cooperation.
White Ink Heat Transfer Dtf Pet Film Printer Fedar Fd65-2 Direct to Film PrinterWe treat every machine in serious and pragmatic attitude: strictly control the purchase of parts, owns rigor quality detection system of production links. Letting every consumer trustworthy in buying and using is the responsibility, to solve every customer's problem is the only objective of our after-sales service.
